Temperature Monitor Data Logger 8 Channel Temperature Meter Tester Thermocouple Thermometer Temperature Measuring Instrument with Accuracy 0.2%+1℃ Resolution 0.1℃

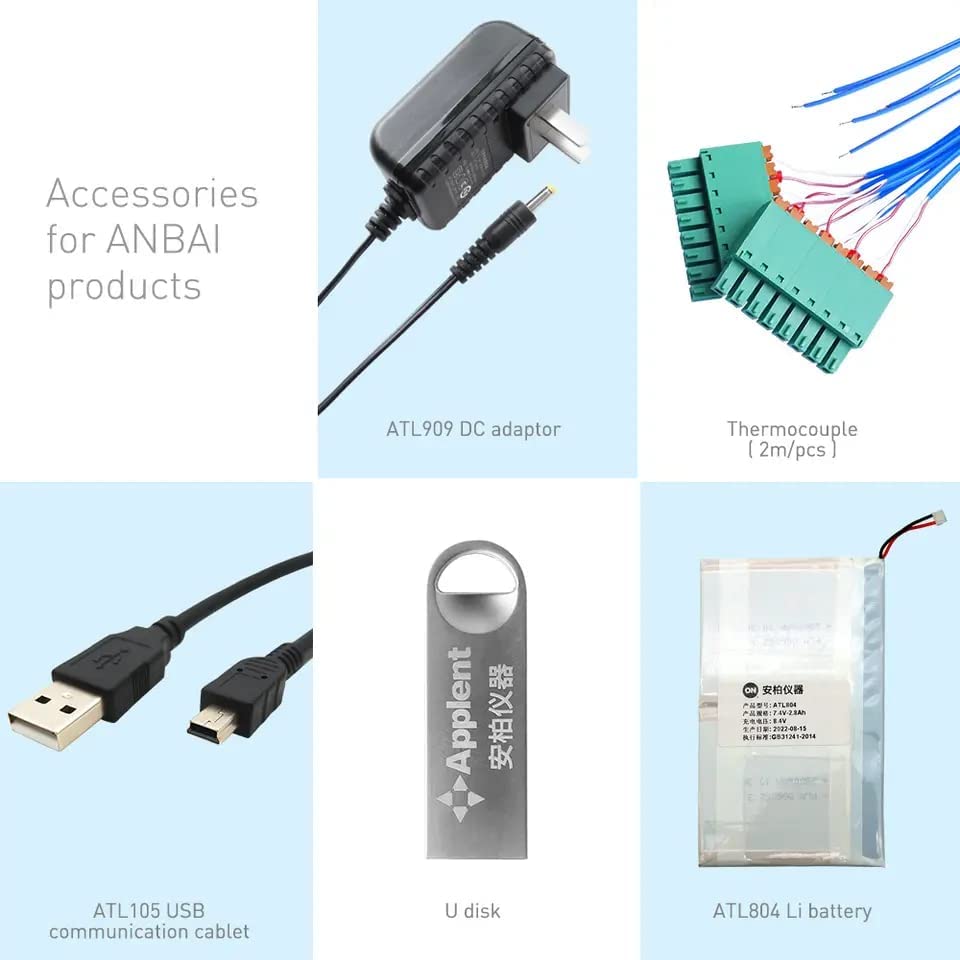

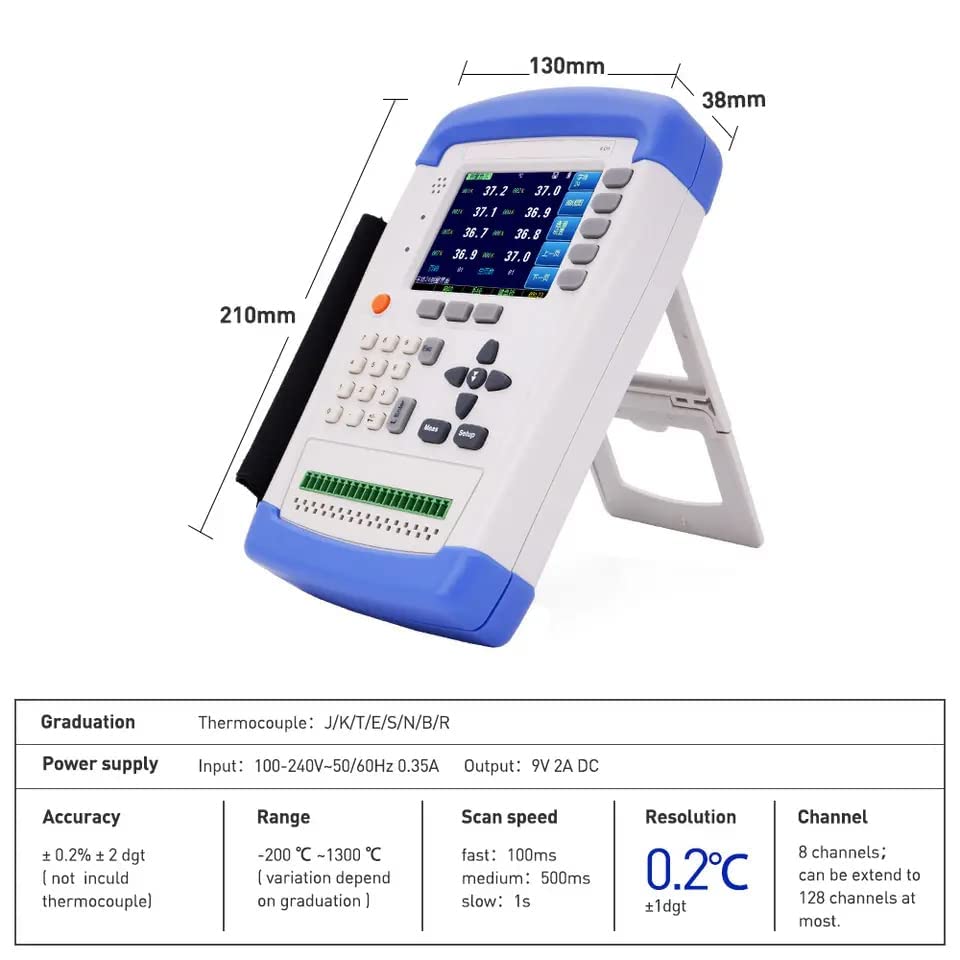

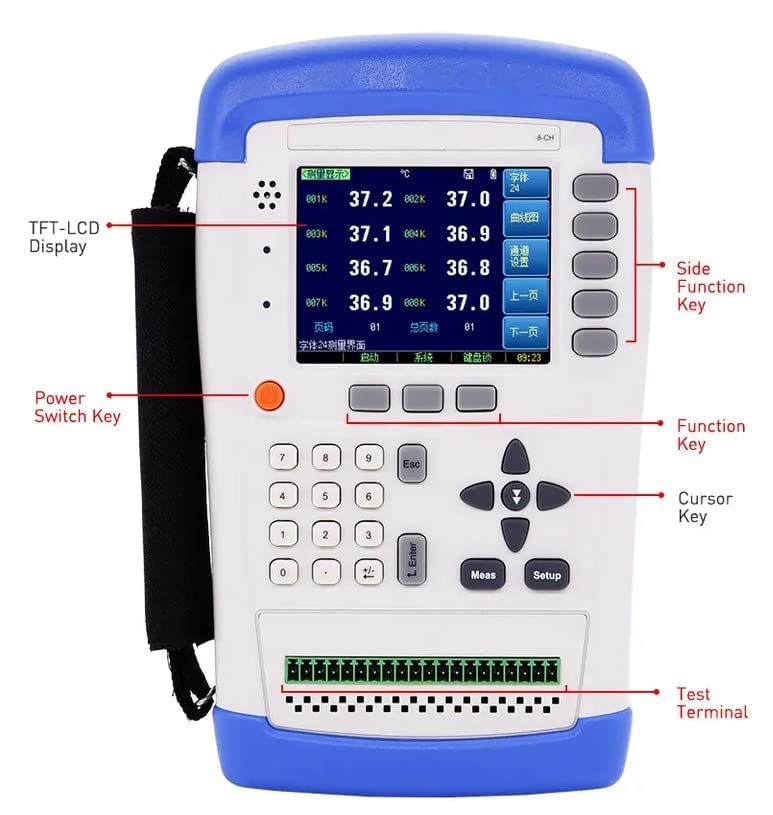

YFYIQI Temperature Monitor Data Logger 8 Channel Temperature Meter Tester Thermocouple Thermometer Temperature Measuring Instrument with Accuracy 0.2%+1℃ Resolution 0.1℃ Feature: TFT-LCD True-color LCD display,three kinds of character font. Fast,medium and low scanning speed. Cold Junction Compensation Standard configuration U-disk and Mini-USB interface,support mass storage device. Broken thermocouple checking function Allocated channel scanning Standard configuration ATS48 data acquistion software 8.4V, Li, 2200mA rechargeable battery Specification: Graduation:Thermocouple:J/K/T/E/S/N/B/R Accuracy:0.2%+1℃ Range:-20℃~200℃Resolution:0.1℃ Channels:8 channels; 128 channels are available Speed:fast: 100ms/channel, medium:500ms/channel, slow: 1s/channel Correction:Error correction for each channel Comparator:high & low beep function for each channel Interface:RS232C, U-disc, USB Software:ATS45 data acquisition software Cold Junction：Accuracy: 0.5℃ Other Functions：TFT-LCD True color display, broken thermocouple check function Power Supply：V: 85VAC～260VAC Fre：50Hz/60Hz Power：10VA Dimension & Weight：216x88x300mm weight：3kg Accessories：K thermocouple 8 channels (2 meters/ channel) Application: Apply to home appliance,motors,heating appliance,temperature controller,transformer,oven,thermal protector,power supply,lighting,electric power,LED and so on.

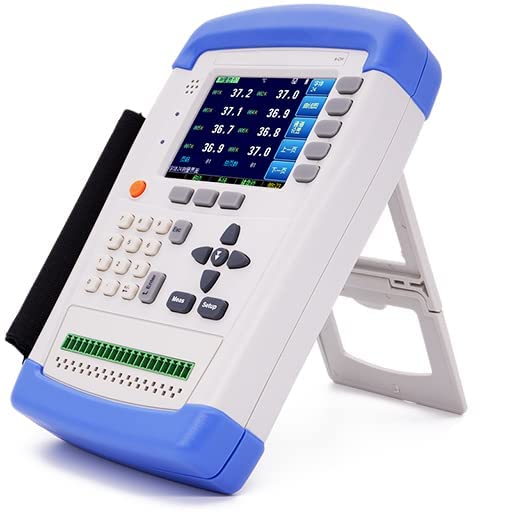

• The handheld multi-channel temperature meter is a new upgraded with ARM micro processor. multi-channel sampling and parallel test, can sampling, alarm and communication transmission to 8 channels simultaneously. compatibility various kinds of temperature sensors, fast response, data stable and with Break even detection function.
• It supports K/N/E/J/T/R//S/B thermocouples. test temperature -1200℃ to 1300℃.
• With RS-232 & USB interface, data collection,alalysis and printing by connection PLC.
• The instrument is equipped with RS-232 interface and USB interface as standard, and provides free communication. Data collection, analysis and printing can be easily realized through PC software.
• It uses a sturdy and anti-vibration shell, which can work in harsh environments. Fully isolated digital and analog signals, ## (can be live test (isolation voltage 230Vrms, 330VDC)) ##, safe and reliable. It comes standard with U disk interface and supports real-time data storage.
