Infrared Thermal Imager Analyzer Thermal Imaging Camera for Electronical Repair, PCB Circuit Board Fault Diagnostic Temperature Desktop Thermal Camera

The PCBA thermal imaging analysis system is a product that uses infrared thermal imaging technology in the field of circuit board troubleshooting. This product can assist engineers to quickly locate defect in PCBAs, such as short circuits, current leakage etc., to improve R&D and troubleshooting's efficiency..Professional Maintenance Software:Suitable for Windows system, recommended to use Win10 or Win11, It is not recommended Win7 or other systems. Professional PC software, 5 color palette effects display, editable pictures,taking photos ,videos and analysing temperature data by chart which can be stored in files and opened in Excel.Note: The PC software is stored on the U disk, please install the software on your computer before useFeatures:Resolution:256x192 pixelFrame frequency:25HzThe range of temperature measurement:-20°C~+150°C(4F~+302°F)View field angle of the lens:56°x42°The distance of temperature measurement:30mm -150mmThe device interface:USB Type CStorage format of the pictures:JPGStorage format of the videos: MP4The input voltage: DC 5VThe temperature range for storage :-20°C~60°CWorking temperature:0C~50°CThe humidity:95% relative humidityPackage List:1 * Thermal Image Analyzer1 * USB A to USB C Data Cable1 * USB C to C Data Cable1 * Flash Driver1 * User Manual

• 【Fast Current Leakage Inspection and Short Circuit Identification】: The thermal imaging camera analyzer 256x192 25Hz could quickly identify high-temperature areas, abnormal components, and short circuits. The color palette and stability adjustments help in pinpointing issues, It can detect PCBs of different sizes, suitable for all application scenarios such as mobile phone, computer and vehicle motherboard repair, and meets various testing requirements.
• 【Intuitive 3D Imaging】: The thermal inspection camera could view circuit boards in 3D mode for a clearer understanding of small current changes. The three-dimensional thermal field shows temperature variations, ideal for industries like electronics., suitable fo r smartp hones and computer maintenance.
• 【Rectangular Analysis Mode】: Perform detailed inspections by comparing image color changes in different areas. Display the temperature curve within the frame to easily track temperature history.
• 【Double-Board Comparison Mode】: Compare good and faulty boards side by side. Place items on either side of the dividing line and analyze them under the same conditions to quickly find faults.

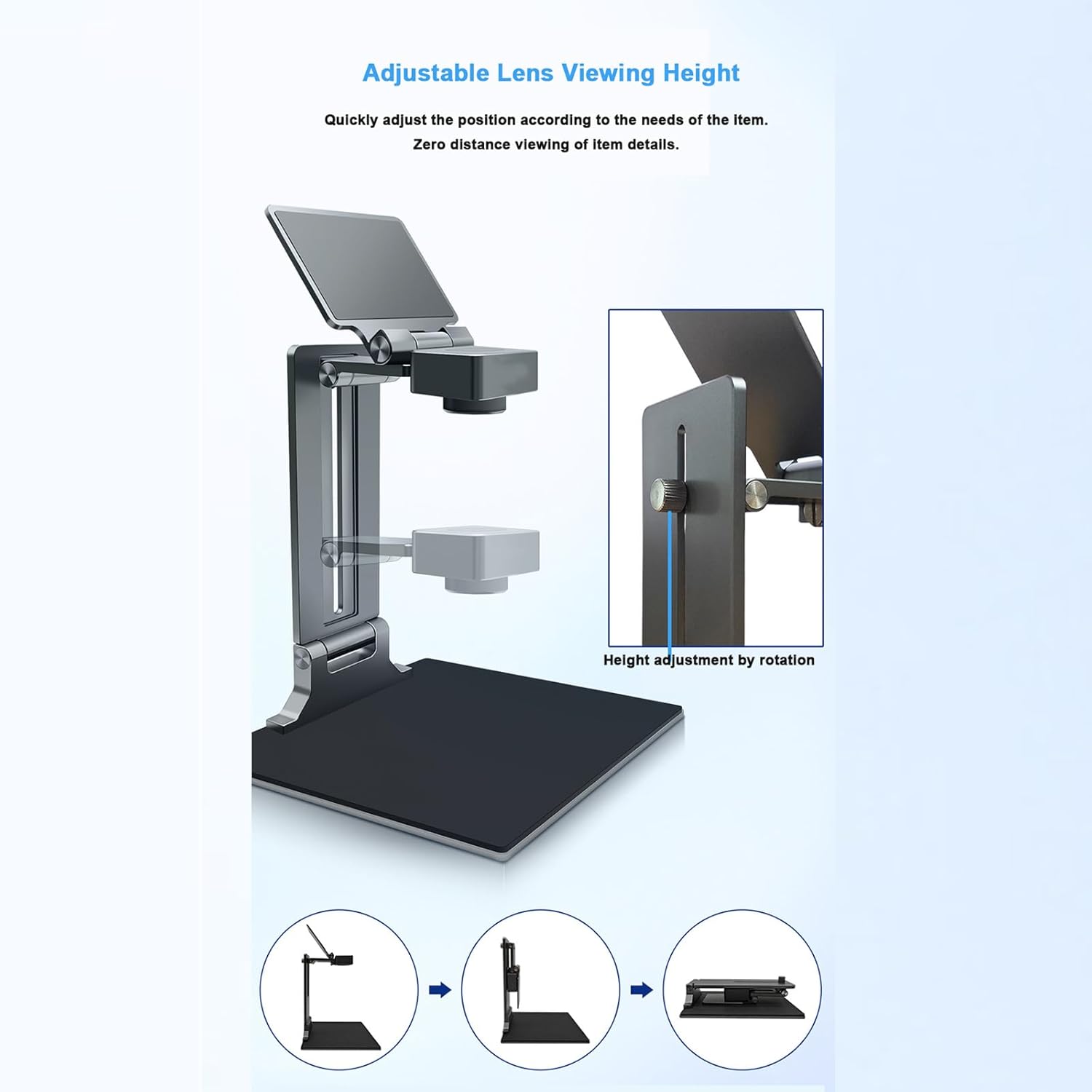

• 【Adjustable Stand and Foldable】: The high-quality metal stand is heat-resistant, easy to install, and allows flexible adjustment and rotation. You can fine-tune the measuring distance of the thermal imager as needed.
• 【What You Will Have】: You will have 1 X Thermal lmager Analyzer,1 x Data cable,1 x User Manual, 1 x USB disk. Our professional team is dedicated to providing excellent service 24/7. Please don't hesitate to reach out with any questions or concerns about our products.. Note: this model without providing Macro Lens.
